• Product Profile

  ---

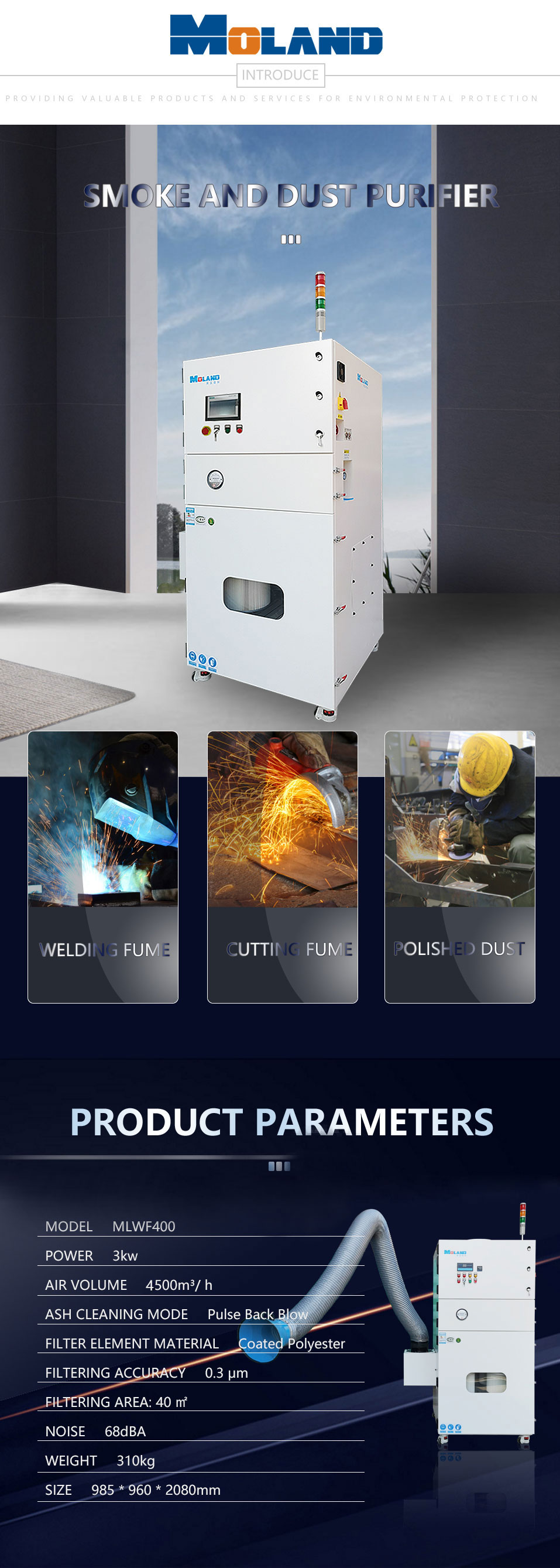

  MLWF Series 400 smoke and dust purifier is an efficient air purifier designed for industrial exhaust smoke and dust. The purifier consists of box, filter cartridge,dust collector drawer,fan,dust cleaning device and electrical system. By gravitaty of the fan, the smoke and dust exhaust gas is sucked into the air inlet of the equipment by a dust hood. The air inlet and outlet of the equipment are equipped with a flame arrester. Sparks are blocked by the fire arrester, the smoke and dust enter the settling chamber by air flow. Firstly, the coarse dust is directly reduced to the dust collecting drawer, and the particulate dust is trapped on the outside surface by the filter element. The filter efficiency can reach 99.7%, filtered clean air is directly discharged into the indoor circulation through the air outlet at the top of the purifier.








  Application: It can be used in single/double welding workstation, grinding, laser cutting, girth welding, etc.




  Product characteristics

  ---

  1. Made of high-quality cold-rolled steel sheet with beautiful and practical appearance.


  2. High-efficiency membrane-coated polyester fiber filter,filtering accuracy is less than 0.3u and filtering efficiency can reach 99.7%.   The replacement cycle of filter material is long and the cost is low.

  3. Imported fan, energy saving and environmental protection, long service life.

  4. The inspiratory arm hovers at 360 degrees.

  5. Compact structure, small area, caster design, easy to move.

  6. Filter element cleaning methord: manual cleaning and automatic cleaning are optional.
